Description
The FTM is a multi-functional unit specifically engineered for anode baking furnace workshops. Given the extreme environment of high-temperature dust and corrosive flue gases, the unit features a fully enclosed operator’s cabin with an intensified pressurized air filtration system. It integrates suction, feeding, and gripping functions, with its core suction and feeding system offering superior wear resistance and thermal stability.
Application
The FTM performs critical process tasks within the baking furnace area:
- Loading & Unloading: Placing green anodes into the furnace pits and extracting baked anodes after the cooling cycle.
- Packing Material Handling: Using vacuum suction pipes to extract hot packing coke and accurately refilling furnace pits with protective materials.
- Furnace Top Maintenance: Assisting in cleaning the furnace deck and maintaining fire path covers with integrated cleaning tools.
Custom Engineering for Anode Baking Challenges

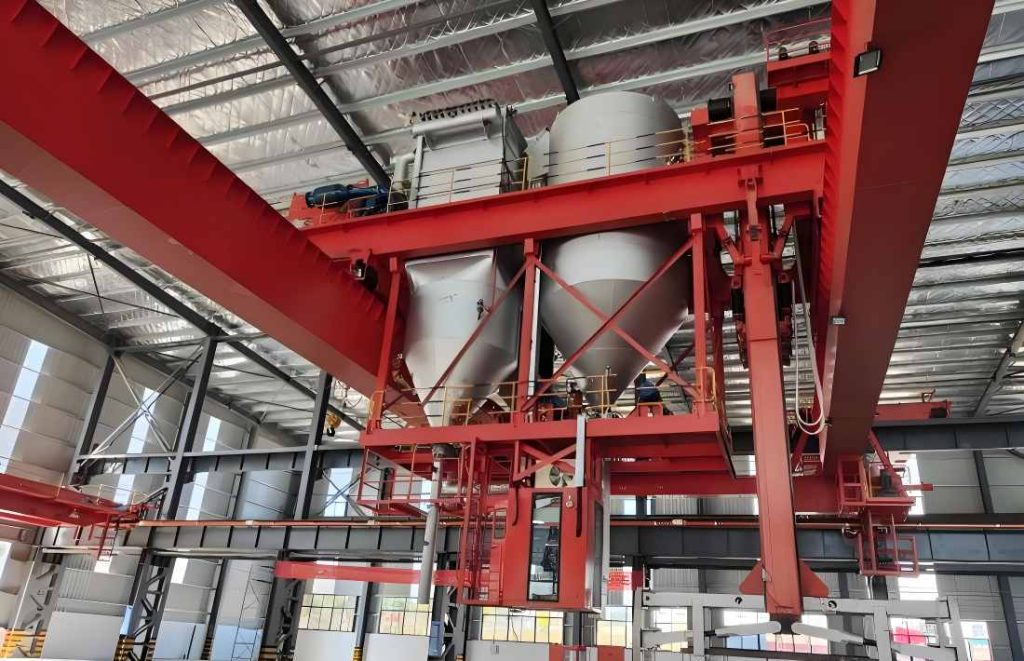

The FTM (Bake Furnace Crane) is the heart of the carbon plant. Standard lifting equipment often fails in the face of extreme thermal radiation, abrasive packing coke dust, and corrosive flue gases. Our FTM solutions are built to last by addressing these specific challenges:
- Thermal Protection: Advanced heat-shielding for electrical components and fully enclosed, pressurized operator cabins with heavy-duty air filtration.
- Abrasive Handling: The suction and feeding systems are reinforced with wear-resistant alloys to handle high-temperature packing coke without frequent downtime.
- Precision Control: Integrated PLC systems allow for millimeter-level accuracy during anode loading/unloading and fire path maintenance.
The Importance of Field Measurement
Because baking furnace pits vary significantly in dimensions, rail spans, and overhead clearances, we offer full-process customization. Our engineering team provides on-site technical measurements to ensure the FTM perfectly integrates with your existing workshop layout, optimizing the flow of green and baked anodes.
Q: What are the main functions of an FTM?
A: An FTM performs loading/unloading anodes, handling packing materials (coke), and furnace top maintenance.
Benefits
Supports customization, available in various specifications.
Lifetime product maintenance,professional after-sales service, andhonest management.
